Building a Scalable Banking ETL Pipeline with AWS, PySpark, and Databricks

Overview

Modern financial institutions handle an immense amount of data each day. Efficient management of this data is vital for compliance, analytics, and delivering quality customer service. This article guides you through designing and deploying an end-to-end ETL (Extract, Transform, Load) system tailored for banking data using AWS cloud resources, Apache PySpark, and Databricks.

Project Breakdown

• Project Layout
• Example Data Model
• Step-by-Step Implementation
• Configuration Guidelines
• Operating and Monitoring the Pipeline

Understanding the ETL Pipeline Structure

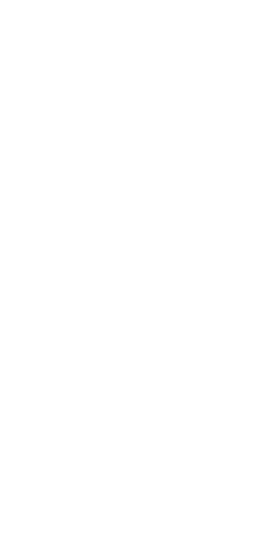

The ETL process for banking datasets typically involves multiple coordinated components that automate the flow of data from raw sources through transformation to final storage. Below is a conceptual visualization of the overall system architecture used in this pipeline:

Project Layout

To keep the pipeline organized and maintainable, files and folders can be structured as follows:

• config/ — Parameter files for environment setups
• src/ — Core Python scripts for ETL tasks
• datasets/ — Sample banking data for development and testing
• logs/ — Application logs and error reports
• notebooks/ — Databricks notebooks for prototyping and exploration

Sample Data Schema

Suppose we process two common tables:

Table Name	Key Columns	Description
accounts	account_id, open_date, status	Details and status for bank accounts
transactions	transaction_id, account_id, date, amount, type	Record of banking transactions per account

Hands-On Pipeline Implementation

1. Initializing the PySpark Session

First, establish a Spark session in Databricks or a similar Spark cluster. This is the context for loading and processing the data:

from pyspark.sql import SparkSession

spark = SparkSession.builder \
    .appName("BankingETLPipeline") \
    .getOrCreate()

2. Importing Raw Files from S3

In this step, data lands in an S3 bucket as CSV or Parquet files. They are loaded into Spark DataFrames:

accounts_df = spark.read.csv('s3://bank-data/raw/accounts.csv', header=True)
transactions_df = spark.read.csv('s3://bank-data/raw/transactions.csv', header=True)

3. Transforming Data

Apply cleansing, normalization, and enrichment transformations. For example:

• Filter out test or invalid records
• Normalize text fields
• Convert date and currency formats
• Aggregate transactions to generate customer insights

4. Validating Data Quality

Implement integrity checks before loading data to the destination warehouse:

• Check for duplicates
• Validate mandatory field presence
• Ensure referential integrity, such as every transaction.account_id linking to an accounts.account_id

5. Loading Processed Data into Redshift

Finally, write curated data sets to an Amazon Redshift cluster using a JDBC or Redshift connector:

accounts_df.write \
    .format('com.databricks.spark.redshift') \
    .option('url', 'jdbc:redshift://...') \
    .option('dbtable', 'accounts') \
    .mode('append') \
    .save()

6. Orchestration Logic

Control the pipeline flow using workflow automation tools such as Apache Airflow, AWS Step Functions, or Databricks Workflows. Each task (ingestion, transformation, loading) can be set as a distinct job or notebook.

Sample Configuration Example

Store sensitive parameters outside source code in a config file (config/pipeline_config.yaml):

spark:
  app_name: BankingETLPipeline
aws:
  s3_bucket: "bank-data"
redshift:
  url: "jdbc:redshift://..."
  user: "username"
  password: "password"

Getting Started—Hands-On Instructions

1. Setup the Cloud and Databricks Environment: Provision your AWS, Databricks, and Redshift resources.
2. Generate Synthetic Data: Use scripting or data generation tools to create sample banking data if real data is unavailable.
3. Run the Pipeline: Execute the PySpark ETL jobs in Databricks or your Spark environment.
4. Monitor Execution and Logs: Use the logging directory or Databricks job runs to review outcomes and debug errors.
5. Automate Pipeline Scheduling: Create schedules in Databricks, Apache Airflow, or AWS native orchestration services to automate periodic execution.

Tracking and Troubleshooting

Efficient operational routines include:

• Continuous monitoring of job status and data quality reports
• Setting up automated alerts for job failures or anomalies
• Storing results of quality checks and failures for audit and review

Summary

Developing a scalable ETL solution tailored for banking enables secure, efficient, and high-integrity data movement from raw ingestion to rich analytics. Combining AWS for storage and compute, PySpark for transformation, and Databricks as the orchestration platform helps create a robust foundation for modern financial data systems.
